Evolv DNA 200 Board

200w, Balance Charging, Screen

£39.99

In stock

Evolv DNA 200 Board

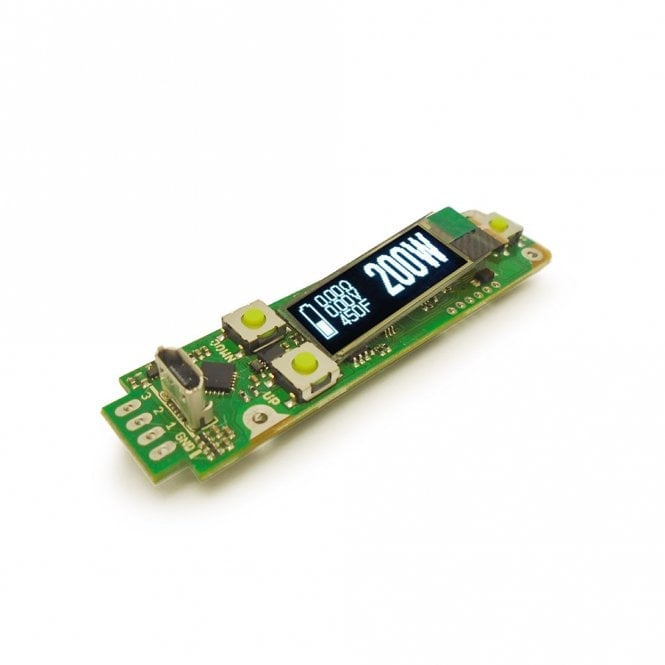

The Evolv DNA 200 board is a full vape mod circuit board. The board is for DIY mod making projects or repair of an existing DNA200 mod. The DNA 200 chip is a digital circuit, which delivers regulated power. Features include variable wattage control and temperature control suite.

Battery efficiency is 97%, meaning no wasting of battery life. Power can be from two or more Lithium-ion / LiPo cells. When using two cells, the maximum output will be limited to 133w. To utilise the full 200w, you will require three battery cells. There is on-board balance charging system on the board. You can solder a battery tray to this. If you are using LiPo cells, then use the included balance charge connection.

The charging port in built-in and will provide a 1A current, split across the cells. An OLED screen comes with the board comes, please be gentle when installing.

On-board software can be customised with the Evolv EScribe software. This allows mode and setting changes, as well as diagnostic information.

Evolv DNA 200 Features & Specifications:

  • Wattage Range: 1w – 200w
  • Voltage Range: 0.5v – 9.0v
  • Temperature Control Range: 200 °F – 600 °F / 93 °C – 315 °C
  • Supported Temperature Materials: Ni200, Titanium, Stainless Steel
  • Add Custom TFR/ TCR Curves Using The EScribe Suite
  • 128 × 32 OLED Screen
  • 97% Output Efficiency
  • Preheat / Boost Function
  • Reverse Polarity Protection
  • Low Resistance Protection
  • Short Circuit Protection
  • Overheat Protection
  • Low Voltage Protection
  • Integrated Micro USB Connector
  • Firmware Upgradeable
  • 1A Charging Current

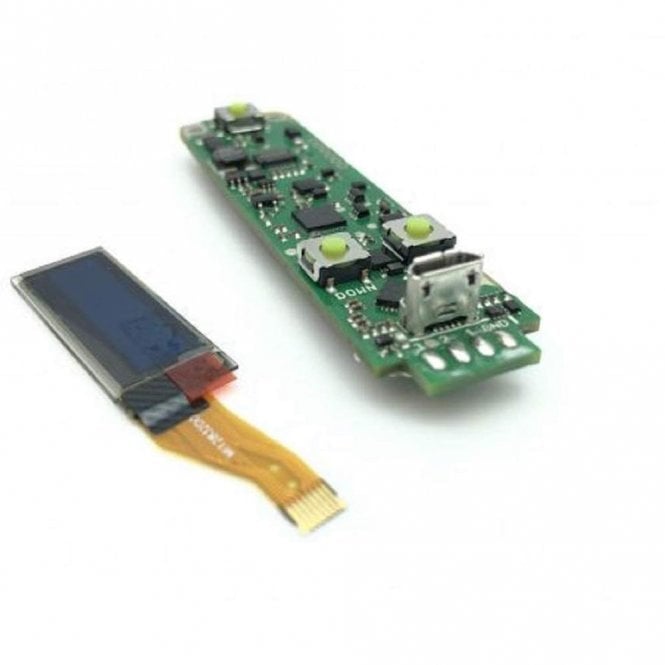

Package Contents:

  • 1 x Evolv DNA 200 Chip
  • 1 x DNA Screen
  • 1 x Balance Charging Connector

Additional information

Origin Country

China
